Frequently Asked Questions

TRACE Software

Attention! This procedure requries your computer to be connected to Internet.



To install a last version of TRACE app you will need to download the installation file and then remove the previous version of TRACE app from your computer to replace it with newer one. Here is the step-by-step guide:





The file most likely will end up in your Downloads directory or on your Desktop.

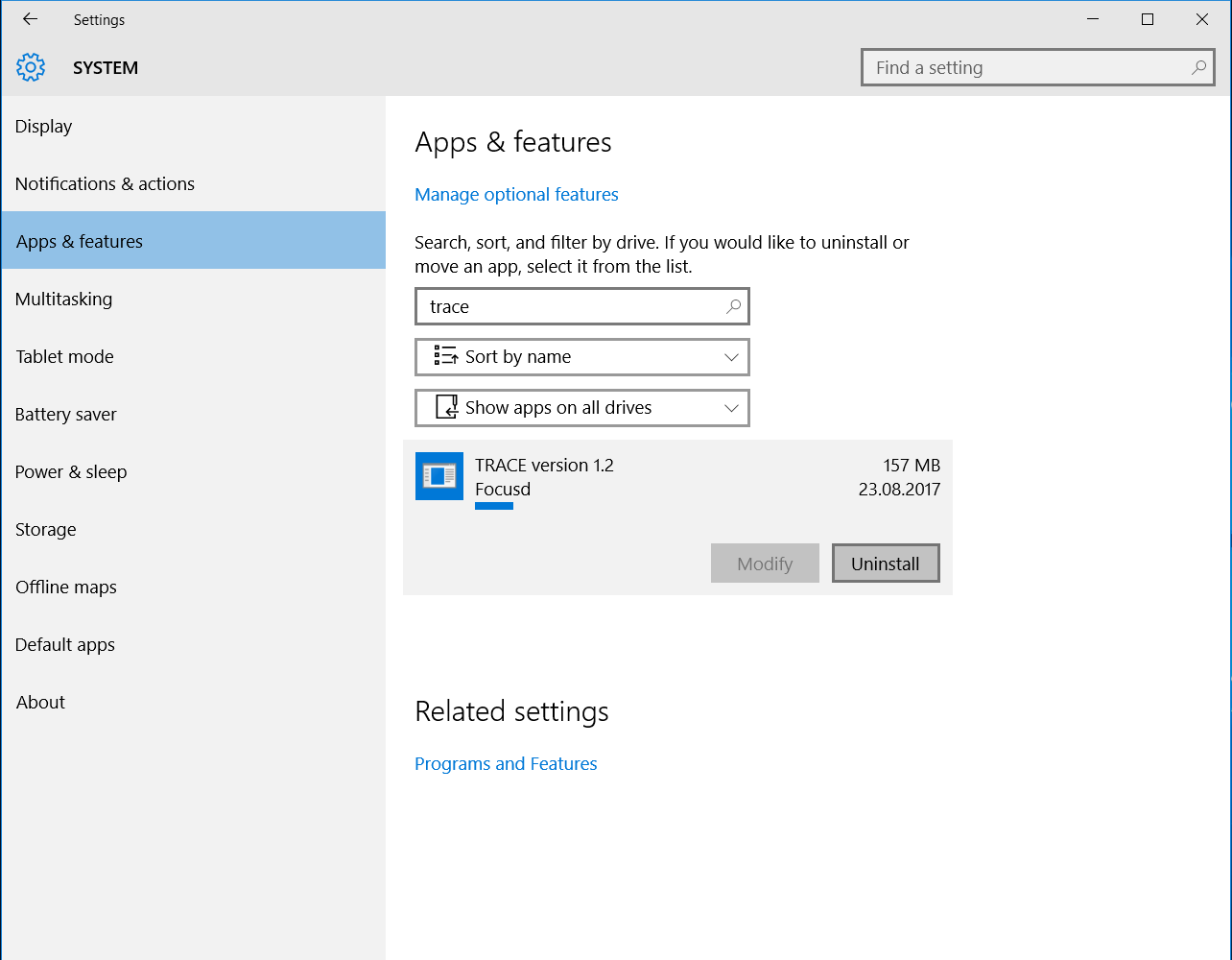

2. Now it's time to remove your old TRACE app. Open your Windows Search and type in "Add or remove programs" to open a list of applications you can manage.



3. Find TRACE and click "Uninstall".











Please note, that your training files won't be removed unless you will delete them manually.



4. You might be prompted to confirm your choice - just confirm to uninstall by clicking 'Yes'.



5. Time to install the newer version of TRACE App! Open the installation file you've downloaded on step №1.



Upon opening the installation file you might a notification as shown below. TRACE app doesn't mean any harm to you computer, but only enhancements in your shooting technique. :)



Please proceed by clicking 'More info' and then click 'Run anyway' to initiate the installation of the TRACE app.





This will allow TRACE installer wizard to launch. There is nothing easier than next steps!



When you have selected a language, please click 'Next'.



7. And the folder in your file system where TRACE app will be installed. We do not recommend changing it, unless you would like to install it to other folder for a certain reason.
Click 'Next' to proceed.



8. Make sure you mark 'Create a desktop shortcut' option to access TRACE app easier.



Click 'Next' to proceed.



9. Now the installation process has begun! You can track the progress via the progress bar as shown below. It will finish automatically. Please do not shut down or restart your computer during installation.



10. When installation has finished, you will see the screen as shown below.
Now you can click 'Finish' and start using your TRACE app!





Please remember, that you will require a TRACE 10 sensor and a license key in order to start training sessions with TRACE app.
There are two ways to set up target detection for TRACE 10.

I. Automatic target detection (recommended)

Starting TRACE App v.1.2. (2308) our software allows to use automated target detection in order to start training faster. Please follow these steps to use autodetection feature:

1. Start the training session
2. In the toolbar find a 'View' and selection 'Settings' from the menu it opens
3. In settings window go to 'Target detection' section
4. Make sure you have enabled the volume on your computer
5. Adjust the TRACE 10 sensor focus so that target would be clearly distinguishable on screen
6. Adjust brightness to achieve best contrast
7. Prepare yourself for shooting; take the starting position and prepare to aim as you would do for your every in-training shot
8. Click 'Auto Detect radiuses'. You will see countdown from 5 to 1. While it counts, start aiming at the target as you normally would. It is important that by the end of the countdown your gun aims at the target and TRACE 10.

You will hear beeping; that means that the autodetection feature collects data. Aim at the target while it beeps (normally some 5 secondss).

9. When it stopped, check the results.

IMPORTANT! To acheive better results please avoid executing auto-detect while your pistol or rifle lies on the table or on the weapon stand. Autodetection should occur in real circumstances (as if you would normally aiming).

Here is the video that shows the described steps:
Scenario II. Setting up target detection manually

If you are using TRACE App version older than v.1.2. (2308) or automatic target detection didn't work for your shooting environment, you can always set up your detection manually.

To do this please follow these steps.

1. Make sure that TRACE 10 is aimed at the target
2. Adjust the TRACE 10 sensor focus so that target would be clearly distinguishable on screen
3. Make sure brightness is adjusted achieve best contrast
4. Start the training session
5. In the toolbar find a 'View' and selection 'Settings' from the menu it opens
6. In settings window go to 'Target detection' section
7. Adjust values of 'min radius' and 'max radius' so that green circle appears on camera screen.

i. For TRACE App v.1.2. (2308) or older, you will need to click 'Set up radiuses manually' in order to make 'min radius' and 'max radius' editable.

In order to achieve good target detection please follow these principles:
- 'min radius' should always be lower than 'max radius'
- green circle should always be located around black ring on target
- narrow the difference between 'min radius' and 'max radius' until the green circle has stabilized around the black ring; green circle should be jumping around the target.

Below are few examples of good and bad detection.

Bad:

Good:

That's it! Once done, you can proceed with your training by firing a calibration shot.
TRACE 10 includes a wide range of targets for various shooting disciplines, with following included:
ISSF:
  • 10m Air Pistol
  • 10m Air Rifle
  • 10m Running Target
  • 25m Precision Pistol
  • 25m Rapid Fire Pistol
  • 50m Pistol
  • 50m Rifle
  • 100m Rifle
  • 300m Rifle
BDS:
  • Kurzwaffenscheibe
  • 50m
  • 100m
  • 100m ZF
  • 300m
  • 300m ZF
Other:
  • 15m Zimmerstutzen
  • Danish 15m M84 skive
  • Danish 15m M96/g skive
  • Swiss 300m A5
  • Swiss 300m A10
Your favourite target missing? Contact us to check when it is going to be released!



To adjust TRACE 10 for live fire:

1) Have the system is up and running

2) Make 3-5 shots on the target

3) Select 'View' from the toolbar on top of the screen.

4) Select "Settings" and go to "Shot detection" section.

5) Adjust the value of "Time offset (s)".
Keep increasing the Time offset until pattern of the virtual shots matches the pattern of real shots on the target.

6) Once patterns look similar, switch to the main target screen within the TRACE app.
Then hold down Ctrl key on your keyboard and use Primary Mouse Button to drag and drop the group of virtual shots to match the location on real target.

NB! To get the best possible match between real shots and virtual shots repeat the adjustment described in step 3 and 4 to fine tune your setup.

Once you are satisfied with the your setup, use "Save preset" option in Settings screen to retain your setup for your next training sessions!

TRACE software can run on Windows 7, 8 and 10 operating systems.
Mac OS version is being developed. To follow our progress you are welcome to sign up for our Newsletter directly in this website footer.

Currently TRACE 10 software supports English, German, Russian and Danish languages. We are planning to add more languages in nearest future.

Missing your spoken language? Ask us when it's going to be released!
Yes, you can save your training sessions and keep them as files to review and analyze them at any time.

To save your training session to a file:
  1. In open TRACE app go to toolbar on the top of the screen and open “File” menu.
  2. Select “Save As”
  3. Select a location in your computer's file system to keep your training file and click “Save”.
  4. Done!
NB! To Save trainings to a file faster you can simply use a keyboard shortcut Ctrl + Shift + S.
Yes, you can install and use TRACE App on multiple computers. To do that you need to request software activation code for each individual computer separately.
Yes, you can print the target directly from TRACE application.
TRACE app also features a tool that allows you to scale the target for your desired distance to practice at home.
Yes!
However, it would take few extra simple steps in configuring Parallels for TRACE 10 to operate correctly:

1. Unplug TRACE 10 and make sure TRACE app does not run on your machine
2. Switch off Parallels
3. Connect TRACE 10 to your USB
4. Launch Parallels with Windows
5. Click 'Virtual Machine' in your toolbar and navigate to 'Configure' menu

6. 'Find USB & Bluetooth' and select 'USB Connection Preferences'


8. Open 'Devices' tab and set it up as it's shown below. As a result, your USB Camera should be permanently assigned to your Windows virtual machine.


Please remember to Confirm and Save your configuration.

9. Plug out and plug in TRACE 10 sensor into the same USB port.

Voila!
Systems requirements to run TRACE software:
  • Processor: Intel Core 2 or AMD Athlon 64 (dual core preferred); 2.0 Ghz or faster
  • Operating system: Windows 7, Windows 8.1 or Windows 10
  • RAM: 2.00 Gb (recommended: 4 Gb)
  • At least 0.5 Gb of free space on your hard drive
  • Access to Internet for mandatory licensing and software updates.

Shipping

We ship to more than 130 countries in the world using such parcel delivery services as DHL Express, Express Mail Service or Registered Airmail.

For more information on delivery to your country please contact us.
Once we ship your order, we will send you an e-mail that will contain a tracking number for your shipment and a link to the website which will allow to track your parcel.

To see the status of your package simply click on the link we provide.
We use following delivery services to ship orders to our customers:

  1. Free Shipping using Registered Airmail
  2. DHL Express
  3. Express Mail Service
How much does the shipping cost?
Yes, you can install and use TRACE App on multiple computers. To do that you need to request software activation code for each individual computer separately.

Purchase

Nothing. Software updates for TRACE 10 system are free of charge and included in original price of the purchase of entire system.
The following payment options are accepted:

1) Credit card (VISA and MasterCard)
2) Paypal
3) Bank transfer

General Questions Aboout Product

TRACE 10 supports the majority of shooting disciplines, with following included:
  • 10m Air Pistol / 10m Air Pistol Supported
  • 25m Precision Pistol
  • 50m Pistol
  • 10m Air Rifle / 10m Air Rifle Supported
  • 15m Zimmerstutzen
  • 50m Rifle
and many other.

Didn't find your favourite discipline? Contact us to check if it is supported.
Yes! You can use TRACE 10 system outdoors!

TRACE app has a special regime that allows you to enhance the target detection if you are training in challenging lighting cirumstances by enabling 'Training in low-light conditions' regime.

To access the low-light regime:
  1. Open TRACE app
  2. Click "View" on top of the screen
  3. Select “Settings”
  4. Go to “Target Detection” section
  5. Check 'Training in low-light conditions' checkbox.

Training in low-light conditions checkbox
TRACE 10 sensor has a built in microphone which works to detect the sound of the firing pin or trigger mechanism. Microphone is hidden within TRACE sensor which means it can detect only shots of the weapon the system is mounted on.
TRACE 10 sensor should be connected to the computer via USB 2.0 cable, which is extremely lightweight. Vast majority of computers are equipped with multiple USB ports that TRACE 10 uses to connect to.
TRACE 10 has a universal mount which is designed to be attached to cylindrical objects with diameter of 18 - 36 mm. This makes it versatile for almost any type of air weapon that has air cylinder and most smallbore rifles, as well as other kinds of weapons.
TRACE 10 also can be mounted on such .22 caliber sport pistols as Pardini, Walther SSP and many others.
Not sure if TRACE 10 sensor will fit on your favourite weapon? Contact us for help.
Yes, you can save your training sessions and keep them as files to review and analyze them at any time.

To save your training session to a file:
  1. In open TRACE app go to toolbar on the top of the screen and open “File” menu.
  2. Select “Save As”
  3. Select a location in your computer's file system to keep your training file and click “Save”.
  4. Done!
NB! To Save trainings to a file faster you can simply use a keyboard shortcut Ctrl + Shift + S.
TRACE app allows to easily adjust the brightness of the sensor to have system working in almost any possible lighting conditions. TRACE sensor requires target to be illuminated only to 100-150 lux. It is very convenient for home practice as you don't need to have additional lighting source.
Yes, TRACE 10 is great to practice at home. System allows practicing at the distance as short as 3m and simulating live shooting at a distance up to 300m. All you need is your weapon and a scaled target, which you can print directly from TRACE app.

Besides, TRACE app has a special regime that allows you to enhance the target detection if you are training in challenging lighting cirumstances by enabling 'Training in low-light conditions' regime.

To access the low-light regime:
  1. Open TRACE app
  2. Click "View" on top of the screen
  3. Select “Settings”
  4. Go to “Target Detection” section
  5. Check 'Training in low-light conditions' checkbox.
No.

There are no additional cables or any other hardware that you need to attach to the target. TRACE 10 automatically detects the black bullseye of the target. You can practice with paper and electronic targets such as SIUS, Meyton and others, as easy as Mount - Connect - Fire.
Yes.

TRACE 10 helps to simulate live shooting. TRACE 10 sensor detects the click of the firing pin or trigger and registers your shot. This allows you can practice a wide range of shooting disciplines right at home, in dry-fire mode (not firing actual bullets). For this all you need is 3-4m long space and a downscaled paper target, which you can easily print directly from TRACE software.
